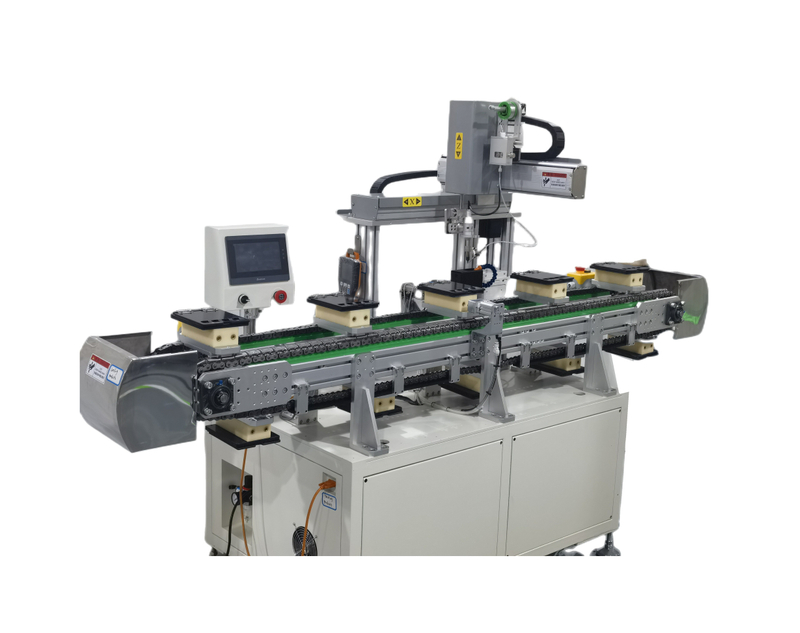

BBA Полностью настраивая встроенная паяльная машина полностью настраивается на основе требований клиента с автоматической передачей пояс для постоянного передачи нескольких продуктов, чтобы сохранить время выбора и места, повысить эффективность. Применимо для электронной платы, светодиодной алюминиевой подложки, подключаемых электронных компонентов, процесса проводной пайки и т. Д.
| Количество: | |
|---|---|
BBA-8331HX
BBA
| Model | BBA-331HX (Single Y platform) | BBA-5331HX (Dual Y platforms) | BBA-6331HX (Dual soldering systems) | BBA CUSTOMIZED | |||
| Voltage | AC 110/220V 50/60HZ | ||||||
| Power | 350W | 350W | 700W | To order | |||
| Movable range | X | 300mm | X | 500mm | X1/X2 | 500mm | To order |
| Y | 300mm | Y1/Y2 | 300mm | Y1/Y2 | 300mm | ||
| Z | 100mm | Z | 100mm | Z | 100mm | ||
| R | 360° | R | 360° | R | 360° | ||
| Max moving speed | X | 600mm/s | X | 600mm/s | X1/X2 | 600mm/s | To order |
| Y | 600mm/s | Y1/Y2 | 600mm/s | Y1/Y2 | 600mm/s | ||
| Z | 400mm/s | Z | 400mm/s | Z | 400mm/s | ||
| R | 300°/s | R | 300°/s | R | 300°/s | ||
| Repeat Positioning Accuracy | ±0.02mm (X * Y * Z), ±0.05° (R) | To order | |||||
| Maximum Load Weight | 8KG (For Work Platform) | To order | |||||
| Programming File Capacity | 256MB, up to 999 files, single file up to 1000 points | To order | |||||
| Preheating Temperature Range | 0℃~ 550℃ | To order | |||||
| Solder Wire Diameter | 0.4, 0.6, 0.8, 1.0, 1.2,1.6 (mm) | To order | |||||
| Tin feeding control | Precision stepper motor | To order | |||||
| External Dimensions(L*W*H) | 70*60*85(CM） | 85*60*85(CM） | 100*60*85(CM） | To order | |||
| Weight | 65KG | 90KG | 120KG | To order | |||
| Model | BBA-331HX (Single Y platform) | BBA-5331HX (Dual Y platforms) | BBA-6331HX (Dual soldering systems) | BBA CUSTOMIZED | |||
| Voltage | AC 110/220V 50/60HZ | ||||||
| Power | 350W | 350W | 700W | To order | |||
| Movable range | X | 300mm | X | 500mm | X1/X2 | 500mm | To order |
| Y | 300mm | Y1/Y2 | 300mm | Y1/Y2 | 300mm | ||
| Z | 100mm | Z | 100mm | Z | 100mm | ||
| R | 360° | R | 360° | R | 360° | ||
| Max moving speed | X | 600mm/s | X | 600mm/s | X1/X2 | 600mm/s | To order |
| Y | 600mm/s | Y1/Y2 | 600mm/s | Y1/Y2 | 600mm/s | ||
| Z | 400mm/s | Z | 400mm/s | Z | 400mm/s | ||
| R | 300°/s | R | 300°/s | R | 300°/s | ||
| Repeat Positioning Accuracy | ±0.02mm (X * Y * Z), ±0.05° (R) | To order | |||||
| Maximum Load Weight | 8KG (For Work Platform) | To order | |||||
| Programming File Capacity | 256MB, up to 999 files, single file up to 1000 points | To order | |||||
| Preheating Temperature Range | 0℃~ 550℃ | To order | |||||
| Solder Wire Diameter | 0.4, 0.6, 0.8, 1.0, 1.2,1.6 (mm) | To order | |||||
| Tin feeding control | Precision stepper motor | To order | |||||
| External Dimensions(L*W*H) | 70*60*85(CM） | 85*60*85(CM） | 100*60*85(CM） | To order | |||
| Weight | 65KG | 90KG | 120KG | To order | |||
